Chevrolet Equinox Key Fob Programming
Updated 2026 2005–2021 14 model years
Programming steps, the battery it takes, and the exact replacement fob for every Chevrolet Equinox model year we cover (2005–2021). Find your year in the table, then jump to the details for that generation.
Every Chevrolet Equinox model year
| Year | Programming | Key fob | Battery |
|---|---|---|---|
| 2021 | Proximity Key · 3/4/5-button | CR2032 battery on Amazon | |
| 2020 | Proximity Key · 3/4/5-button | CR2032 battery on Amazon | |
| 2019 | Remote Head Key, Proximity Key · 3/4/5-button | CR2032 battery on Amazon | |
| 2018 | Proximity Key, Remote Head Key · 3/4/5-button | CR2032 battery on Amazon | |
| 2017 | Proximity Key, Remote Head Key · 3/4/5-button | CR2032 battery on Amazon | |
| 2016 | Remote Head Key · 3/4/5-button | CR2032 battery on Amazon | |
| 2015 | Remote Head Key · 3/4/5-button | CR2032 battery on Amazon | |
| 2014 | Remote Head Key, Remote · 3/4/5/7-button | CR2032 battery on Amazon | |
| 2013 | Remote Head Key, Remote · 3/4/5/7-button | CR2032 battery on Amazon | |
| 2012 | Remote Head Key, Remote · 3/4/5/7-button | CR2032 battery on Amazon | |
| 2011 | Remote Head Key, Remote · 3/4/5/7-button | CR2032 battery on Amazon | |
| 2010 | Remote, Remote Head Key · 3/4/5/6/7-button | CR2032 battery on Amazon | |
| 2006 |

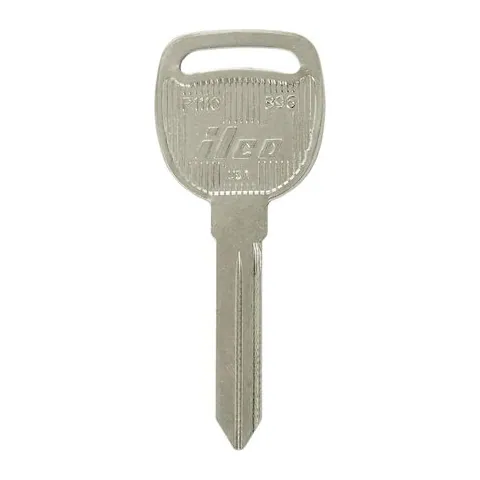

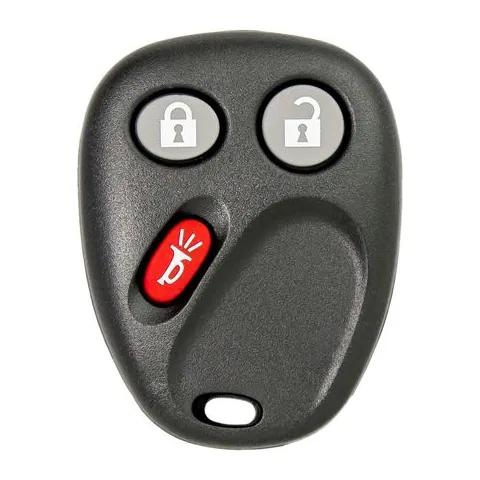

| Remote, Transponder Key · 3-button | CR2032 battery on Amazon |
| 2005 |
| Remote, Transponder Key · 3-button | CR2032 battery on Amazon |
2021 Chevrolet Equinox
How to program your key fob
If your Chevrolet has push-button start with a smart key, you can program it yourself: Method A with two working smart keys, Method B with one or none (up to 8 total).
Full steps: Chevrolet Smart Key Programming With the Start/Stop Button
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
2 versionsStays in your pocket — the car unlocks and starts without inserting a key.
3/4/5-button Proximity Key
Find on Amazon- FCC ID
- HYQ4AA
- OE part #
- 13508766, 13508767, 13529650, 13529664, 13529665, 13584498 +7 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4-button Proximity Key
Find on Amazon- FCC ID
- HYQ4AS
- OE part #
- 13522874, 13522889, 13547791, 13549084
- Frequency
- 315 MHz
- Chip
- NXP AES 128 BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2020 Chevrolet Equinox
How to program your key fob
If your Chevrolet has push-button start with a smart key, you can program it yourself: Method A with two working smart keys, Method B with one or none (up to 8 total).
Full steps: Chevrolet Smart Key Programming With the Start/Stop Button
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
2 versionsStays in your pocket — the car unlocks and starts without inserting a key.
3/4/5-button Proximity Key
Find on Amazon- FCC ID
- HYQ4AA
- OE part #
- 13508766, 13508767, 13529650, 13529664, 13529665, 13584498 +7 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
4-button Proximity Key
Find on Amazon- FCC ID
- HYQ4EA
- OE part #
- 13529648, 13585720
- Frequency
- 433 MHz
- Chip
- PHILIPS ID 46
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2019 Chevrolet Equinox
How to program your key fob
This GM vehicle comes in two ignition types — match yours: a regular ignition (transponder or flip key) using two working keys, or push-button start using two working smart keys (with a fallback for one or none).
Full steps: GM Key Programming: Regular Ignition and Push-Button Start
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
2 versionsStays in your pocket — the car unlocks and starts without inserting a key.
3/4/5-button Proximity Key
Find on Amazon- FCC ID
- HYQ4AA
- OE part #
- 13508766, 13508767, 13529650, 13529664, 13529665, 13584498 +7 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
4-button Proximity Key
Find on Amazon- FCC ID
- HYQ4EA
- OE part #
- 13529648, 13585720
- Frequency
- 433 MHz
- Chip
- PHILIPS ID 46
Remote Head Key
2 versionsOne piece: a cut metal blade with the lock/unlock buttons built into the head.
4/5-button Remote Head Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +16 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13501514, 13501913, 13504199 +30 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2018 Chevrolet Equinox
How to program your key fob
This GM vehicle comes in two ignition types — match yours: a regular ignition (transponder or flip key) using two working keys, or push-button start using two working smart keys (with a fallback for one or none).
Full steps: GM Key Programming: Regular Ignition and Push-Button Start
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
3 versionsStays in your pocket — the car unlocks and starts without inserting a key.
4/5-button Proximity Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4/5-button Proximity Key
Find on Amazon- FCC ID
- HYQ4AA
- OE part #
- 13508766, 13508767, 13529645, 13529650, 13529664, 13529665 +10 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
4-button Proximity Key
Find on Amazon- FCC ID
- HYQ4EA
- OE part #
- 13529648, 13585720
- Frequency
- 433 MHz
- Chip
- PHILIPS ID 46
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13501514, 13501913, 13504199 +39 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2017 Chevrolet Equinox
How to program your key fob
This GM vehicle comes in two ignition types — match yours: a regular ignition (transponder or flip key) using two working keys, or push-button start using two working smart keys (with a fallback for one or none).
Full steps: GM Key Programming: Regular Ignition and Push-Button Start
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
Stays in your pocket — the car unlocks and starts without inserting a key.
4/5-button Proximity Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13501514, 13501913, 13504199 +50 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2016 Chevrolet Equinox
Remote / key fob programming
This GM vehicle comes in two ignition types — match yours. On a regular ignition you add a key with one working key; on push-button start you program smart keys (Method A with two, Method B with one or none).
Key programming
On this GM vehicle you can add a key yourself (these steps program both the key and remote together). On a regular ignition you use one working key; on push-button start you program transmitters. Works only for non-PEPS keys, not vehicles with passive entry, and not in Canada.
Full steps: GM Key and Transmitter Programming by Ignition Type
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
2 versionsOne piece: a cut metal blade with the lock/unlock buttons built into the head.
4/5-button Remote Head Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13500227, 13501513, 13501514 +60 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2015 Chevrolet Equinox
How to program your key fob
This GM vehicle comes in two ignition types. On a regular key ignition you can add a key with one working key. On push-button start you program transmitters — use the method that matches whether you have a working transmitter.
Full steps: GM Key and Transmitter Programming by Ignition Type
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
2 versionsOne piece: a cut metal blade with the lock/unlock buttons built into the head.
4/5-button Remote Head Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13500227, 13501513, 13501514 +60 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2014 Chevrolet Equinox
How to program your key fob
On this GM vehicle you can program a new transponder key yourself using a key that already starts the engine. It takes under a minute per key.
Full steps: GM Transponder Key Programming With a Working Key
Takes about under a minute per key
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
2 versionsOne piece: a cut metal blade with the lock/unlock buttons built into the head.
4/5-button Remote Head Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13500227, 13501513, 13501514 +60 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Remote
A separate key fob that only handles locking and unlocking.
7-button Remote
Find on Amazon- FCC ID
- KOBGT04A, OUC60221, OUC60270
- OE part #
- 22733523
- Frequency
- 315 MHz
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2013 Chevrolet Equinox
How to program your key fob
This GM vehicle comes in two ignition types. On a regular key ignition you can add a key with one working key. On push-button start you program transmitters — use the method that matches whether you have a working transmitter.
Full steps: GM Key and Transmitter Programming by Ignition Type
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
2 versionsOne piece: a cut metal blade with the lock/unlock buttons built into the head.
4/5-button Remote Head Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13500227, 13501513, 13501514 +60 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Remote
A separate key fob that only handles locking and unlocking.
7-button Remote
Find on Amazon- FCC ID
- KOBGT04A, OUC60221, OUC60270
- OE part #
- 22733523
- Frequency
- 315 MHz
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2011–2012 Chevrolet Equinox
How to program your key fob
On this GM vehicle you can program a new transponder key yourself using a key that already starts the engine. It takes under a minute per key.
Full steps: GM Transponder Key Programming With a Working Key
Takes about under a minute per key
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
2 versionsOne piece: a cut metal blade with the lock/unlock buttons built into the head.
4/5-button Remote Head Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13500227, 13501513, 13501514 +60 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Remote
A separate key fob that only handles locking and unlocking.
7-button Remote
Find on Amazon- FCC ID
- KOBGT04A, OUC60221, OUC60270
- OE part #
- 22733523
- Frequency
- 315 MHz
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2010 Chevrolet Equinox
How to program your key fob
On this GM vehicle you can program a new transponder key yourself using a key that already starts the engine. It takes under a minute per key.
Full steps: GM Transponder Key Programming With a Working Key
Takes about under a minute per key
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
2 versionsOne piece: a cut metal blade with the lock/unlock buttons built into the head.
4/5-button Remote Head Key
Find on Amazon- FCC ID
- OHT05918179, P4O9MK74946931
- OE part #
- 13500224, 13500225, 13500318, 13500319, 13504202, 13504236 +19 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- AVL-B01T1AC, AVL-B01T2AC, KR55WK50073, OHT01060512, V2T01060512, V2T01060514
- OE part #
- 13500221, 13500222, 13500226, 13500227, 13501513, 13501514 +60 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46 GM EXT
Remote
A separate key fob that only handles locking and unlocking.
4/5/6/7-button Remote
Find on Amazon- FCC ID
- KOBGT04A, OUC60221, OUC60270
- OE part #
- 10337866, 10337867, 15859329, 15859331, 15912859, 15912860 +15 more
- Frequency
- 315 MHz
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2005–2006 Chevrolet Equinox
Remote / key fob programming
This remote can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new remote, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement remote below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Key programming
This key fob can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new fob, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement fob below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote
A separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- LHJ011
- OE part #
- 10377295, 15132197, 15132198, 15186200, 15186201, 15186203 +2 more
- Frequency
- 315 MHz
Transponder Key
3 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- GM-39
- OE part #
- B102, P1113
Transponder Key
Find on Amazon- Key blank
- B102
- OE part #
- B102
Transponder Key
Find on Amazon- Key blank
- GM-40
- OE part #
- GM-40, P1110
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
Chevrolet Equinox key fob battery
Your Chevrolet Equinox key fob uses a CR2032 3V lithium coin cell. A fresh one typically lasts 3–5 years.
Buy Energizer CR2032 Lithium Coin Batteries (4-pack) on AmazonHow to replace the battery
- 1 Find the seam or small slot on the edge of the remote.
- 2 Twist a coin or small flathead in the slot to split the case open.
- 3 Remove the old coin cell and note the + side.
- 4 Fit the new battery with the + side matching, then close the case.
- 5 Press a button to confirm the LED lights, then test at the car.
Battery tips
- Use a fresh, name-brand 3V lithium cell — bargain cells drain quickly.
- Try not to touch both faces of the new battery; skin oils shorten its life.
- If the remote still doesn't work after a new battery, it may need re-syncing or programming.
We may earn a commission on qualifying purchases made through links on this page, at no extra cost to you. It never affects which product we recommend. Learn more.
Rather hire a pro?
See what it actually costs, broken out by dealer, locksmith, and DIY:
