Ford Explorer Key Fob Programming
Updated 2026 1998–2020 23 model years
Programming steps, the battery it takes, and the exact replacement fob for every Ford Explorer model year we cover (1998–2020). Find your year in the table, then jump to the details for that generation.
Every Ford Explorer model year
| Year | Programming | Key fob | Battery |
|---|---|---|---|
| 2020 |
| Proximity Key, Transponder Key, Remote Head Key, Remote · 3/4/5-button | CR2450 battery on Amazon |
| 2019 |
| Proximity Key, Remote Head Key, Transponder Key, Remote · 3/4/5-button | CR2450 battery on Amazon |
| 2018 |
| Proximity Key, Remote Head Key, Transponder Key, Remote · 3/4/5-button | CR2450 battery on Amazon |
| 2017 | Proximity Key, Remote Head Key, Transponder Key, Remote · 3/4/5-button | CR2025 battery on Amazon | |
| 2016 | Proximity Key, Transponder Key, Remote Head Key, Remote · 3/4/5-button | CR2025 battery on Amazon | |
| 2015 | Transponder Key, Proximity Key, Remote Head Key · 3/4/5-button | CR2025 battery on Amazon | |
| 2014 | Transponder Key, Proximity Key, Remote Head Key · 3/4/5-button | CR2025 battery on Amazon | |
| 2013 | Transponder Key, Proximity Key, Remote Head Key · 3/4/5-button | CR2025 battery on Amazon | |
| 2012 | Transponder Key, Proximity Key, Remote Head Key · 3/4/5-button | CR2025 battery on Amazon | |
| 2011 | Transponder Key, Proximity Key, Remote Head Key · 3/4/5-button | CR2025 battery on Amazon | |
| 2010 | Transponder Key, Remote Head Key, Remote · 3/4/6-button | CR2032 battery on Amazon | |
| 2009 | Transponder Key, Remote Head Key, Remote · 3/4/6-button | CR2032 battery on Amazon | |
| 2008 | Transponder Key, Remote Head Key · 3/4-button | CR2032 battery on Amazon | |
| 2007 | Transponder Key, Remote Head Key · 3/4-button | CR2032 battery on Amazon | |
| 2006 | Transponder Key, Remote Head Key · 3/4-button | CR2032 battery on Amazon | |
| 2005 | Transponder Key, Remote Head Key · 3/4-button | CR2032 battery on Amazon | |
| 2004 | Transponder Key, Remote Head Key · 3/4-button | CR2032 battery on Amazon | |
| 2003 | Transponder Key, Remote · 3/4-button | CR2032 battery on Amazon | |
| 2002 | Transponder Key, Remote · 3/4-button | CR2032 battery on Amazon | |
| 2001 | Transponder Key, Remote · 3/4-button | CR2032 battery on Amazon | |
| 2000 | Transponder Key, Remote · 3/4-button | CR2032 battery on Amazon | |
| 1999 | Transponder Key, Remote · 3/4-button | CR2032 battery on Amazon | |
| 1998 | Transponder Key, Remote · 3/4-button | CR2032 battery on Amazon |
2020 Ford Explorer
How to program your key fob
This key fob can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new fob, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement fob below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
2 versionsStays in your pocket — the car unlocks and starts without inserting a key.
3/4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C931423, M3N-A2C93142300
- OE part #
- 164-R8150, 164-R8159, 164-R8163, 164-R8187, 164-R8197, 164-R8246 +23 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG PRO ID49 128 BIT
4/5-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C931426, M3N-A2C93142600
- OE part #
- 164-R8149, 164-R8162, 164-R8182, 164-R8198, 164-R8244, 164-R8275 +17 more
- Frequency
- 902 MHz
- Chip
- NXP HITAG-PRO ID49 128-BIT
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3-button Remote Head Key
Find on Amazon- FCC ID
- N5F-A08TAA, N5F-A08TDA
- OE part #
- 164-R8130, 164-R8283, 5923667, 5939702, FL3T-15K601, FL3T-15K601-AB +3 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote
A separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- CWTWB1U0009
- OE part #
- GB5T-15K601-FA, GB5Z-15K601-C
- Frequency
- 315 MHz
Transponder Key
4 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- IAX00012124
- OE part #
- H128-PT, H128PT
- Chip
- HITAG PRO 128-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2018–2019 Ford Explorer
How to program your key fob
This key fob can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new fob, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement fob below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
2 versionsStays in your pocket — the car unlocks and starts without inserting a key.
3/4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C931423, M3N-A2C93142300
- OE part #
- 164-R8150, 164-R8159, 164-R8163, 164-R8187, 164-R8197, 164-R8246 +23 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG PRO ID49 128 BIT
4/5-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C931426, M3N-A2C93142600
- OE part #
- 164-R8149, 164-R8162, 164-R8182, 164-R8198, 164-R8244, 164-R8275 +17 more
- Frequency
- 902 MHz
- Chip
- NXP HITAG-PRO ID49 128-BIT
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4-button Remote Head Key
Find on Amazon- FCC ID
- BFD40-I, N5F-A08TAA, N5F-A08TDA
- OE part #
- 164-R7978, 164-R7986, 164-R8130, 164-R8283, 5923667, 5924003 +9 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote
A separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- CWTWB1U0009
- OE part #
- GB5T-15K601-FA, GB5Z-15K601-C
- Frequency
- 315 MHz
Transponder Key
4 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- IAX00012124
- OE part #
- H128-PT, H128PT
- Chip
- HITAG PRO 128-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2017 Ford Explorer
How to program your key fob
This Ford has two DIY remote types — match yours. A flip key (regular ignition) uses two working keys; a smart proximity key (push-button start) uses two working smart keys. Read your method through first.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
3 versionsStays in your pocket — the car unlocks and starts without inserting a key.
3/4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31243800, M3N-A2C31243801
- OE part #
- 164-R8109, 164-R8111, 164-R8120, 164-R8139, 164-R8143, 5926057 +6 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG-PRO ID49 128-BIT
4/5-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31243300
- OE part #
- 164-R7989, 164-R7991, 164-R8106, 164-R8108, 164-R8119, 164-R8140 +14 more
- Frequency
- 902 MHz
- Chip
- NXP HITAG-PRO ID49 128-BIT
4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31227300
- OE part #
- 164-R7988, 5923895
- Frequency
- 868 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3-button Remote Head Key
Find on Amazon- FCC ID
- BFD40-I, N5F-A08TAA, N5F-A08TDA
- OE part #
- 164-R7978, 164-R8130, 164-R8283, 5923667, 5925267, 5939702 +7 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote
A separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- CWTWB1U0009
- OE part #
- GB5T-15K601-FA, GB5Z-15K601-C
- Frequency
- 315 MHz
Transponder Key
4 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- IAX00012124
- OE part #
- H128-PT, H128PT
- Chip
- HITAG PRO 128-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2016 Ford Explorer
How to program your key fob
This Ford has two DIY remote types — match yours. A flip key (regular ignition) uses two working keys; a smart proximity key (push-button start) uses two working smart keys. Read your method through first.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
4 versionsStays in your pocket — the car unlocks and starts without inserting a key.
3/4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31243800, M3N-A2C31243801
- OE part #
- 164-R8109, 164-R8111, 164-R8120, 164-R8139, 164-R8143, 5926057 +6 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG-PRO ID49 128-BIT
5-button Proximity Key
Find on Amazon- FCC ID
- M3N-5WY8609, M3N5WY8609, M3N5WY8610
- OE part #
- 164-R8092, 164-R8094, 164-R8103, 5921286, 5921288, 5931757 +2 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
4/5-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31243300
- OE part #
- 164-R7989, 164-R7991, 164-R8106, 164-R8108, 164-R8119, 164-R8140 +14 more
- Frequency
- 902 MHz
- Chip
- NXP HITAG-PRO ID49 128-BIT
4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31227300
- OE part #
- 164-R7988, 5923895
- Frequency
- 868 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3-button Remote Head Key
Find on Amazon- FCC ID
- N5F-A08TAA, N5F-A08TDA
- OE part #
- 164-R8130, 164-R8283, 5923667, 5939702, FL3T-15K601, FL3T-15K601-AB +3 more
- Frequency
- 315 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote
A separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- CWTWB1U0009
- OE part #
- GB5T-15K601-FA, GB5Z-15K601-C
- Frequency
- 315 MHz
Transponder Key
4 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- IAX00012124
- OE part #
- H128-PT, H128PT
- Chip
- HITAG PRO 128-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2015 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. Try Method A first; if it doesn't work, use Method B. Don't press the brake pedal at any point.
Key programming
This Ford comes in two ignition types — match yours. A regular key ignition uses two working keys to add a new one; push-button start uses two working smart keys. Read your method through first.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
2 versionsStays in your pocket — the car unlocks and starts without inserting a key.
4/5-button Proximity Key
Find on Amazon- FCC ID
- M3N-5WY8609, M3N5WY8609, M3N5WY8610
- OE part #
- 164-R8091, 164-R8092, 164-R8094, 164-R8103, 5921285, 5921286 +7 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31227300
- OE part #
- 164-R7988, 5923895
- Frequency
- 868 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7996, 164-R8000, 164-R8001, 164-R8002 +55 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Transponder Key
4 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2013–2014 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. Try Method A first; if it doesn't work, use Method B. Don't press the brake pedal at any point.
Key programming
This Ford comes in two ignition types — match yours. A regular key ignition uses two working keys to add a new one; push-button start uses two working smart keys. Read your method through first.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
2 versionsStays in your pocket — the car unlocks and starts without inserting a key.
4/5-button Proximity Key
Find on Amazon- FCC ID
- M3N-5WY8609, M3N5WY8609, M3N5WY8610
- OE part #
- 164-R8091, 164-R8092, 164-R8094, 164-R8103, 5921285, 5921286 +7 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
4-button Proximity Key
Find on Amazon- FCC ID
- M3N-A2C31227300
- OE part #
- 164-R7988, 5923895
- Frequency
- 868 MHz
- Chip
- NXP HITAG-PRO ID49 128 BIT
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7996, 164-R8000, 164-R8001, 164-R8002 +55 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2011–2012 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. Try Method A first; if it doesn't work, use Method B. Don't press the brake pedal at any point.
Key programming
This Ford comes in two ignition types — match yours. A regular key ignition uses two working keys to add a new one; push-button start uses two working smart keys. Read your method through first.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
Stays in your pocket — the car unlocks and starts without inserting a key.
4/5-button Proximity Key
Find on Amazon- FCC ID
- M3N-5WY8609, M3N5WY8609, M3N5WY8610
- OE part #
- 164-R8091, 164-R8092, 164-R8094, 164-R8103, 5921285, 5921286 +7 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4/5-button Remote Head Key
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U722, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7003, 164-R7004, 164-R7005, 164-R7013 +86 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2010 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4-button Remote Head Key
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U722, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7003, 164-R7004, 164-R7005, 164-R7006 +74 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Remote
A separate key fob that only handles locking and unlocking.
6-button Remote
Find on Amazon- FCC ID
- GOH-PCGEN2
- OE part #
- 8L3D-15K601-AA
- Frequency
- 433 MHz
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2009 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4-button Remote Head Key
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U722, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7003, 164-R7004, 164-R7005, 164-R7006 +76 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Remote
A separate key fob that only handles locking and unlocking.
6-button Remote
Find on Amazon- FCC ID
- GOH-PCGEN2
- OE part #
- 8L3D-15K601-AA
- Frequency
- 433 MHz
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2007–2008 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4-button Remote Head Key
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U722, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7003, 164-R7004, 164-R7005, 164-R7006 +76 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2004–2006 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3/4-button Remote Head Key
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7996, 164-R8020, 164-R8021, 164-R8070 +37 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2002–2003 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote
A separate key fob that only handles locking and unlocking.
3/4-button Remote
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7996, 164-R8020, 164-R8021, 164-R8070 +37 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.

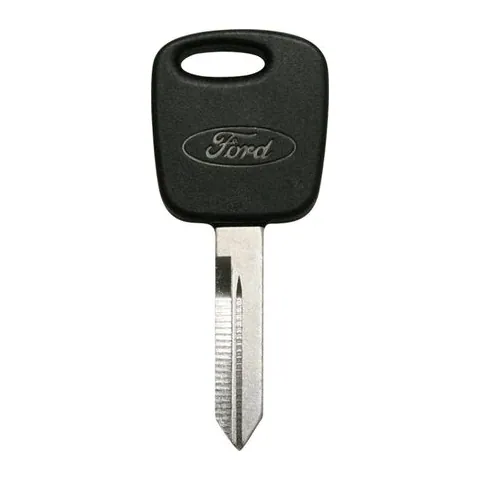

2001 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote
A separate key fob that only handles locking and unlocking.
3/4-button Remote
Find on Amazon- FCC ID
- CWTWB1U212, CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWB1U793, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 164-R7996, 164-R8020, 164-R8021, 164-R8070 +35 more
- Frequency
- 315 MHz
- Chip
- TEXAS ID 4D 63 80 BIT
Transponder Key
6 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- H72-PT-SK, H72PT
- OE part #
- 011-R0221, 40155, 597602, 598333, BH72-PT, H72-PHT +2 more
- Chip
- TEXAS ID 4C
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Transponder Key
Find on Amazon- Key blank
- H92PT
- OE part #
- 5944375, 5944486, H92-PT, H92PT
- Chip
- 4D-63 80-BIT
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2000 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote
A separate key fob that only handles locking and unlocking.
3/4-button Remote
Find on Amazon- FCC ID
- CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 2L3T-15K601-AA, 2L3T-15K601-AB, 2L3Z-15K601-AB, 2S4T-15K601-AA +13 more
- Frequency
- 315 MHz
- Chip
- 4D63 80-BIT
Transponder Key
5 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- H72-PT-SK, H72PT
- OE part #
- 011-R0221, 40155, 597602, 598333, BH72-PT, H72-PHT +2 more
- Chip
- TEXAS ID 4C
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- AF00007290
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
1998–1999 Ford Explorer
Remote / key fob programming
Programming a remote on this Ford resets every remote for the vehicle, so you reprogram them all together. There are two common methods — try Method A first, and if it doesn't work use Method B. Do not press the brake pedal at any point.
Full steps: Ford Remote Programming: Reset and Relearn Every Remote
Key programming
You can add a new key to this Ford yourself if you already have two keys that start the engine. The new key must be cut first, and it has to be a genuine key — a cloned hardware-store key won't work.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote
A separate key fob that only handles locking and unlocking.
3/4-button Remote
Find on Amazon- FCC ID
- CWTWB1U322, CWTWB1U331, CWTWB1U345, CWTWBIU322, CWTWBIU331, CWTWBIU345, GQ43VT11T, OUC6000022, OUCD6000022
- OE part #
- 15K60153309140, 15K601535093529138, 2L3T-15K601-AA, 2L3T-15K601-AB, 2L3Z-15K601-AB, 2S4T-15K601-AA +13 more
- Frequency
- 315 MHz
- Chip
- 4D63 80-BIT
Transponder Key
4 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- BH75
- OE part #
- BH75
Transponder Key
Find on Amazon- Key blank
- H72-PT-SK, H72PT
- OE part #
- 011-R0221, 40155, 597602, 598333, BH72-PT, H72-PHT +2 more
- Chip
- TEXAS ID 4C
Transponder Key
Find on Amazon- Key blank
- FO25
- OE part #
- 11196FD
Transponder Key
Find on Amazon- Key blank
- FO-15DE
- OE part #
- JMA-H75
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
- 1998–1999, 2000, 2001, 2002–2003, 2004–2006, 2007–2008, 2009, 2010
- CR2032 battery on Amazon
- 2011–2012, 2013–2014, 2015, 2016, 2017
- CR2025 battery on Amazon
- 2018–2019, 2020
- CR2450 battery on Amazon
1998–1999, 2000, 2001, 2002–2003, 2004–2006, 2007–2008, 2009, 2010 Ford Explorer key fob battery
Your 1998–1999, 2000, 2001, 2002–2003, 2004–2006, 2007–2008, 2009, 2010 Ford Explorer key fob uses a CR2032 3V lithium coin cell. A fresh one typically lasts 3–5 years.
Buy Energizer CR2032 Lithium Coin Batteries (4-pack) on AmazonHow to replace the battery
- 1 Find the seam or small slot on the edge of the remote.
- 2 Twist a coin or small flathead in the slot to split the case open.
- 3 Remove the old coin cell and note the + side.
- 4 Fit the new battery with the + side matching, then close the case.
- 5 Press a button to confirm the LED lights, then test at the car.
Battery tips
- Use a fresh, name-brand 3V lithium cell — bargain cells drain quickly.
- Try not to touch both faces of the new battery; skin oils shorten its life.
- If the remote still doesn't work after a new battery, it may need re-syncing or programming.
2011–2012, 2013–2014, 2015, 2016, 2017 Ford Explorer key fob battery
Your 2011–2012, 2013–2014, 2015, 2016, 2017 Ford Explorer key fob uses a CR2025 3V lithium coin cell. A fresh one typically lasts 3–5 years.
Buy Energizer CR2025 Lithium Coin Batteries (4-pack) on AmazonHow to replace the battery
- 1 Slide the release latch and pull the metal emergency key out of the fob.
- 2 Use that key (or a coin) to pry the two halves apart at the seam.
- 3 Lift out the old coin cell — note which side faces up.
- 4 Drop in the new battery the same way (printed + side usually faces the back cover).
- 5 Press the case back together until it clicks, then test lock/unlock and push-to-start.
Battery tips
- Use a fresh, name-brand 3V lithium cell — bargain cells drain quickly.
- Even with a dead fob battery you can usually still start the car by holding the fob against the start button — check your owner's manual.
- If the fob still won't work after a new battery, it may need re-syncing or programming.
2018–2019, 2020 Ford Explorer key fob battery
Your 2018–2019, 2020 Ford Explorer key fob uses a CR2450 3V lithium coin cell. A fresh one typically lasts 3–5 years.
Buy Energizer CR2450 Lithium Coin Batteries (2-pack) on AmazonHow to replace the battery
- 1 Slide the release latch and pull the metal emergency key out of the fob.
- 2 Use that key (or a coin) to pry the two halves apart at the seam.
- 3 Lift out the old coin cell — note which side faces up.
- 4 Drop in the new battery the same way (printed + side usually faces the back cover).
- 5 Press the case back together until it clicks, then test lock/unlock and push-to-start.
Battery tips
- Use a fresh, name-brand 3V lithium cell — bargain cells drain quickly.
- Even with a dead fob battery you can usually still start the car by holding the fob against the start button — check your owner's manual.
- If the fob still won't work after a new battery, it may need re-syncing or programming.
We may earn a commission on qualifying purchases made through links on this page, at no extra cost to you. It never affects which product we recommend. Learn more.
Rather hire a pro?
See what it actually costs, broken out by dealer, locksmith, and DIY:
