Kia Sportage Key Fob Programming
Updated 2026 2010–2013 4 model years
The Kia Sportage key fob has to be programmed by an automotive locksmith or dealer — there is no at-home procedure. Below is the exact replacement fob you need for each model year (FCC ID and part number), the battery it takes, and what programming costs.
Every Kia Sportage model year
| Year | Programming | Key fob | Battery |
|---|---|---|---|
| 2013 |
| Remote, Transponder Key, Remote Head Key, Proximity Key · 3/4-button | CR2032 battery on Amazon |
| 2012 |
| Remote, Transponder Key, Remote Head Key, Proximity Key · 3/4-button | CR2032 battery on Amazon |
| 2011 |
| Remote, Transponder Key, Remote Head Key, Proximity Key · 3/4-button | CR2032 battery on Amazon |
| 2010 |
| Remote, Transponder Key, Remote Head Key · 3-button | CR2032 battery on Amazon |
2013 Kia Sportage
Remote / key fob programming
This remote can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new remote, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement remote below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Key programming
This key fob can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new fob, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement fob below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
Stays in your pocket — the car unlocks and starts without inserting a key.
4-button Proximity Key
Find on Amazon- FCC ID
- SY5HMFNA04
- OE part #
- 95440-1M220, 95440-2K300, 95440-2M300, 95440-2M350, 95440-2M351, 95440-3M100 +7 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.

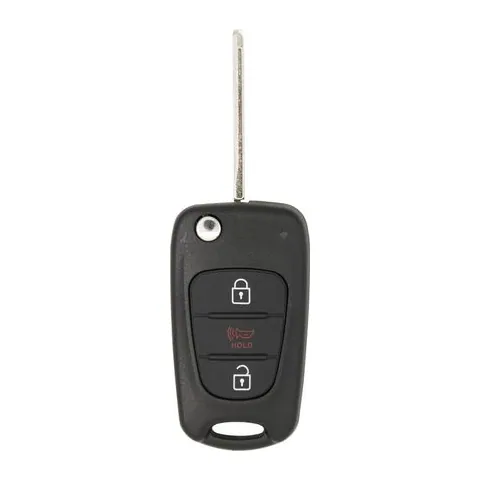

3-button Remote Head Key
Find on Amazon- FCC ID
- NYOSEKSAM11ATX
- OE part #
- 95430-3W700, 95430-3W701
- Frequency
- 315 MHz
Remote
A separate key fob that only handles locking and unlocking.

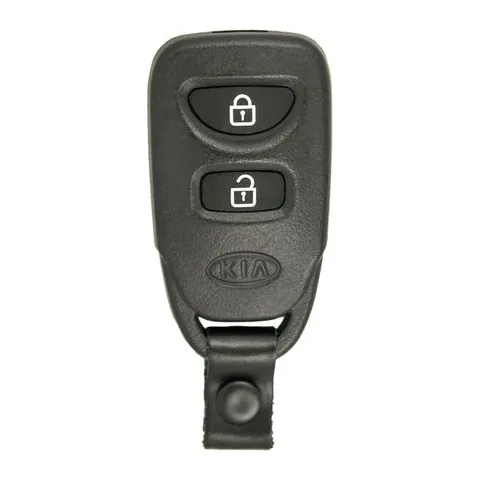

3-button Remote
Find on Amazon- FCC ID
- NYOSEKS-SL10ATX
- OE part #
- 95430-3W100
- Frequency
- 315 MHz
Transponder Key
2 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- HY20-PT, HY20PT
- OE part #
- HY20-PT, HY20PT
- Chip
- PHILIPS ID 46
Transponder Key
Find on Amazon- Key blank
- HY-13D
- OE part #
- HY15
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2012 Kia Sportage
Remote / key fob programming
This remote can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new remote, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement remote below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Key programming
This key fob can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new fob, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement fob below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
Stays in your pocket — the car unlocks and starts without inserting a key.
4-button Proximity Key
Find on Amazon- FCC ID
- SY5HMFNA04
- OE part #
- 95440-1M220, 95440-2K300, 95440-2M300, 95440-2M350, 95440-2M351, 95440-3M100 +8 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3-button Remote Head Key
Find on Amazon- FCC ID
- NYOSEKSAM11ATX
- OE part #
- 95430-3W700, 95430-3W701
- Frequency
- 315 MHz
Remote
A separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- NYOSEKS-SL10ATX
- OE part #
- 95430-3W100
- Frequency
- 315 MHz
Transponder Key
3 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- HY20-PT, HY20PT
- OE part #
- HY20-PT, HY20PT
- Chip
- PHILIPS ID 46
Transponder Key
Find on Amazon- Key blank
- AF00007732
- OE part #
- HY15, X280
Transponder Key
Find on Amazon- Key blank
- HY-13D
- OE part #
- HY-13D, HY15, JMA-HY15
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2011 Kia Sportage
Remote / key fob programming
This remote can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new remote, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement remote below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Key programming
This key fob can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new fob, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement fob below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Proximity Key
Stays in your pocket — the car unlocks and starts without inserting a key.
4-button Proximity Key
Find on Amazon- FCC ID
- SY5HMFNA04
- OE part #
- 95440-1M220, 95440-2K300, 95440-2M300, 95440-2M350, 95440-2M351, 95440-3M100 +8 more
- Frequency
- 315 MHz
- Chip
- PHILIPS ID 46
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3-button Remote Head Key
Find on Amazon- FCC ID
- NYOSEKSAM11ATX
- OE part #
- 95430-3W700, 95430-3W701
- Frequency
- 315 MHz
Remote
A separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- NYOSEKS-SL10ATX
- OE part #
- 95430-3W100
- Frequency
- 315 MHz
Transponder Key
4 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- HY20-PT, HY20PT
- OE part #
- HY20-PT, HY20PT
- Chip
- PHILIPS ID 46
Transponder Key
Find on Amazon- Key blank
- BLXP90-P, LXP90, TR49P
- OE part #
- BLXP90-P, LXP90
Transponder Key
Find on Amazon- Key blank
- AF00007732
- OE part #
- HY15, X280
Transponder Key
Find on Amazon- Key blank
- HY-13D
- OE part #
- HY-13D, HY15, JMA-HY15
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
2010 Kia Sportage
Remote / key fob programming
This remote can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new remote, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement remote below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Key programming
This key fob can't be programmed with a do-it-yourself procedure. The vehicle needs a diagnostic tool connected to its OBD port to pair a new fob, so a replacement has to be set up by an automotive locksmith or a dealer.
Order the correct replacement fob below — match the FCC ID on your current fob first — then have a local automotive locksmith or the dealer program it to your vehicle.
Replacement key fobs
Find your key type below, then match the FCC ID printed on the back of your existing fob — or, for a plain transponder key, the blank code — to be sure of the right part.
Remote Head Key
One piece: a cut metal blade with the lock/unlock buttons built into the head.
3-button Remote Head Key
Find on Amazon- FCC ID
- NYOSEKSAM11ATX
- OE part #
- 95430-3W700, 95430-3W701
- Frequency
- 315 MHz
Remote
2 versionsA separate key fob that only handles locking and unlocking.
3-button Remote
Find on Amazon- FCC ID
- NYOSEKS-SL10ATX
- OE part #
- 95430-3W100
- Frequency
- 315 MHz

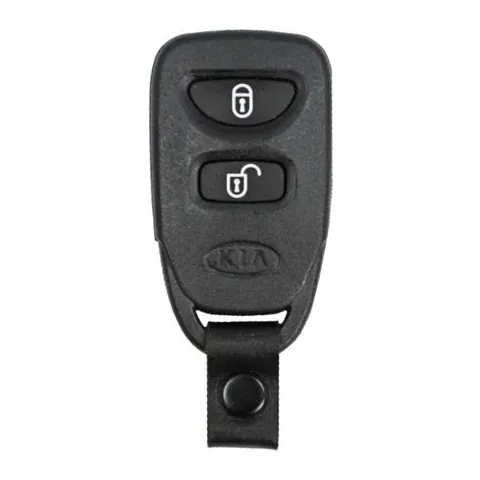

3-button Remote
Find on Amazon- FCC ID
- NYOSEKS-07TX, NYOSEKS-09TX
- OE part #
- 95430-1F100, 95430-1F110, 95430-1F160
- Frequency
- 315 MHz
Transponder Key
3 versionsA cut metal key with a chip in the head. No buttons.
Transponder Key
Find on Amazon- Key blank
- HY20-PT, HY20PT
- OE part #
- HY20-PT, HY20PT
- Chip
- PHILIPS ID 46
Transponder Key
Find on Amazon- Key blank
- BLXP90-P, LXP90, TR49P
- OE part #
- BLXP90-P, LXP90

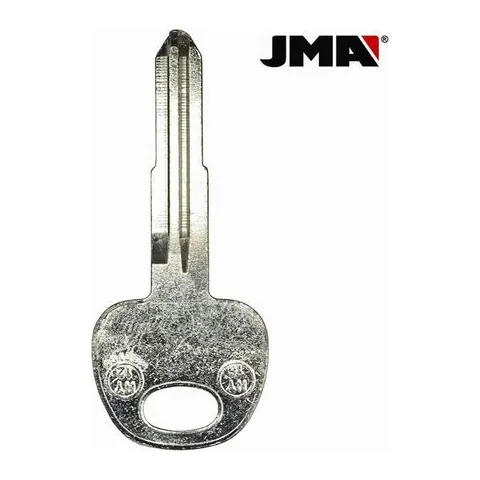

Transponder Key
Find on Amazon- Key blank
- HY-12
- OE part #
- HY16
Photos show the OEM part for each number listed. Aftermarket replacements sold online are often slightly different in appearance — the FCC ID, not the shape, is what determines whether a fob will work with your car.
Kia Sportage key fob battery
Your Kia Sportage key fob uses a CR2032 3V lithium coin cell. A fresh one typically lasts 3–5 years.
Buy Energizer CR2032 Lithium Coin Batteries (4-pack) on AmazonHow to replace the battery
- 1 Look for a small notch or screw on the side of the fob where the key blade meets the buttons.
- 2 Pry the housing apart with a coin or small flathead (or remove the screw).
- 3 Pop out the old coin cell, noting its orientation.
- 4 Insert the new battery the same way up, then snap the case shut.
- 5 Test the buttons — if they work, you're done.
Battery tips
- Use a fresh, name-brand 3V lithium cell — bargain cells drain quickly.
- Try not to touch both faces of the new battery; skin oils shorten its life.
- If the buttons still don't respond after a new battery, the remote may need re-syncing or programming.
